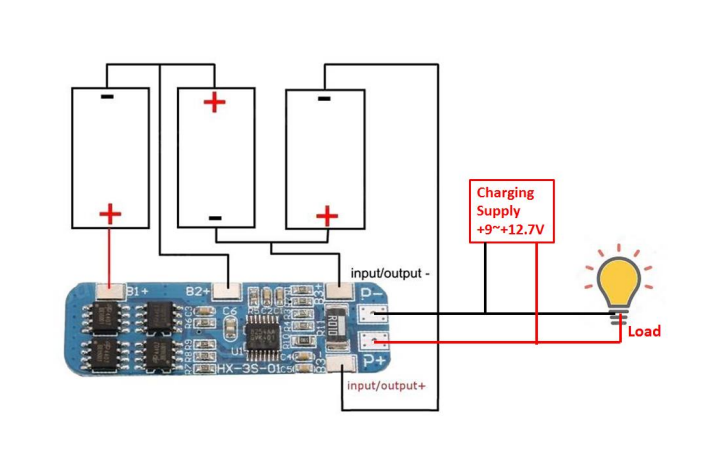

In 3S 10A 12V 18650 Lithium Battery Charger Board Protection Module, 3S stands for 3 18650 batteries or polymer
lithium battery series combination. With 10.8V rated voltage for polymer battery, 11.1V 18650 or 3.7V lithium battery
rated voltage and 12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge
current limit) Lithium battery protection board it also Comes with over-charge, over-discharge, over-current, short
circuit protection
formula expansion :
1C battery expansion, 2000 capacity is equal to 2AH * 1 = 2A upper limit of current.
3C battery expansion, 2000 capacity equal to 2AH * 3 = 6A upper operating current.
If the battery get heat, does not apply that battery, such situation cannot be long-term use, the battery will soon be
damaged.
1. Size: 53 x 17 x 4 mm.
2. Over discharge voltage range : 2.3-3.0 v ± 0.05
3. Recharge voltage range: 4.25-4.35 v ± 0.05 v
4. Operating current : 6-8A
5. Operating temperature : -40 to + 50 ℃
6. Current limit : 10-13A
7. Storage condition : -40- + 80 ℃
8. Resting current : less than 30uA
9. Effective lifetime : over 30,000 hours
10. Internal resistance : less than 100mΩ
11. Short-circuit protection: protection,
12. Self-recovery delay.
13. Charging Voltage: 12.6 V-13 V
