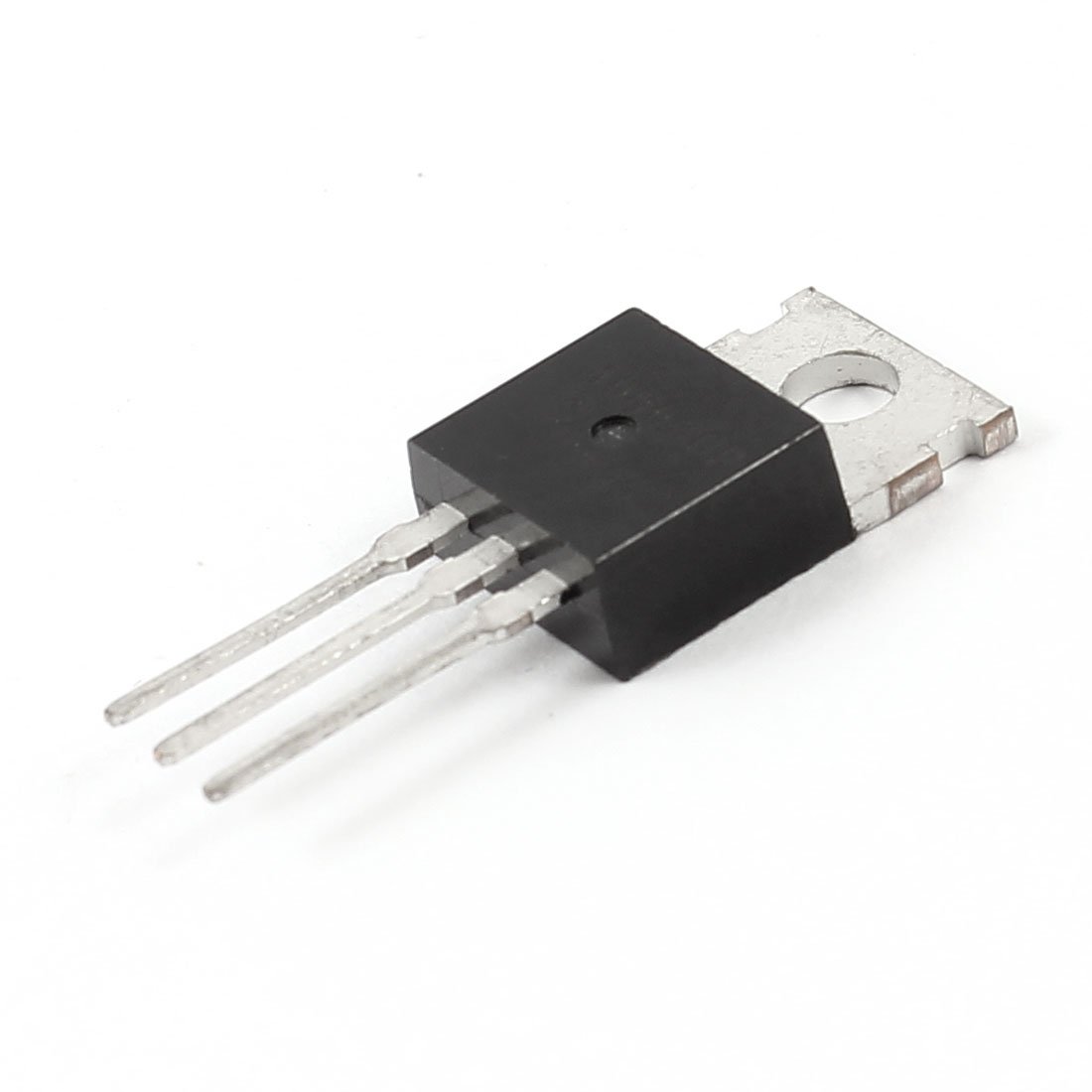

ترانزیستور BD649 TO-220

ترانزیستور BD649 TO-220

Polarity: NPN

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 62 W

Maximum Collector-Base Voltage |Vcb|: 120 V

Maximum Collector-Emitter Voltage |Vce|: 100 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 8 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 1 MHz

Forward Current Transfer Ratio (hFE), MIN: 750

Noise Figure, dB: –

Package: TO220
