Introduction

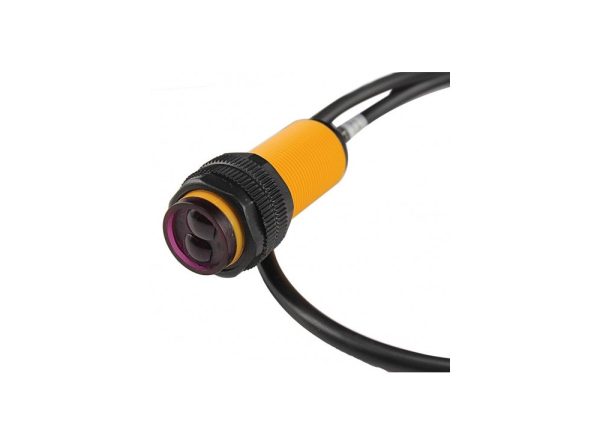

This is a set of transmitter and receiver in one of the photoelectric sensors. Detection distance can be adjusted according to the requirements. The sensor has a detection distance, by small visible light interference, cheap, easy to assemble, easy to use features, can be widely used in robot obstacle avoidance, line piecework and many other automation products.

Specification

the output current DC / SCR / Relay Control output: 100mA / 5V power supply
the current consumption of the DC <25mA
response time <2ms
point angle: ≤۱۵ °, effective distance 3-80CM adjustable
detect objects: a transparent or opaque body
the working environment temperature: -25 deg.] C ~ + 55 deg.] C
the standard sensing object: sunlight 10000LX less incandescent 3000LX the following
case material: plastic
VCC: Brown
GND: Blue
Signal: Black

Applications

to detect or count object (transparent or opaque).
by robot car to detect obstacle and then avoid it.
as a photoelectric switch.
