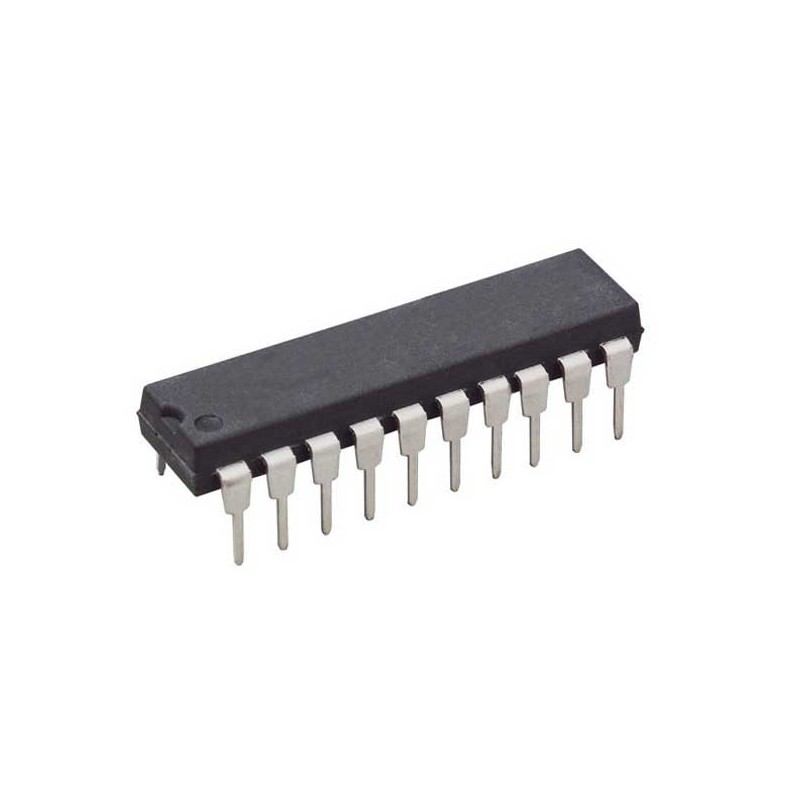

تراشه بافر ۷۴HC245 پکیج DIP

Specification

Product Category: Bus Transceivers
Logic Family: HC
Input Level: CMOS
Output Level: CMOS
Output Type: 3-State
High Level Output Current: – 6 mA
Low Level Output Current: 6 mA
Propagation Delay Time: 22 ns
Supply Voltage – Max: 6 V
Supply Voltage – Min: 2 V
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 85 C
Package / Case: PDIP-20
Packaging: Tube
Function: Tri-State Octal Bus
Height: 4.57 mm
Length: 24.33 mm
Number of Circuits: 8
Product: Standard Transceiver
Series: SN74HC245
Technology: CMOS
Width: 6.35 mm
Brand: Texas Instruments
Mounting Style: Through Hole
Number of Channels: 8
Supply Current – Max: 8 uA
Operating Supply Voltage: 2 V to 6 V
Polarity: Non-Inverting
Product Type: Bus Transceivers
