Description

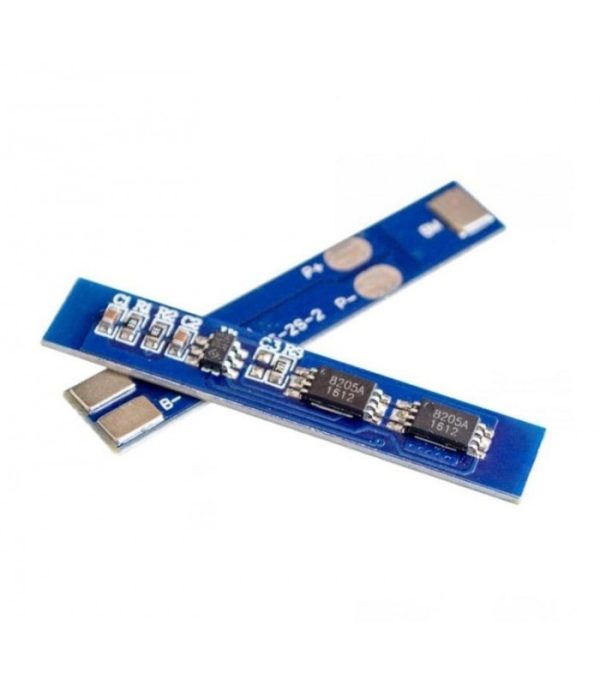

2S 5A Li-ion Battery Protection Board BMS PCM HX-2S-01

Specifications:
ولتاژ شارژ: 8.4V-9V
بازه ی افزایش ولتاژ Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
Upper Limit Operating Current: 5A
Upper Limit Instantaneous Current: 7A
Quiescent Current: less than 10uA
Internal Resistance: less than 100m Ω
Effective Life: more than 30,000 hours
Operating Temperature: -40- +50 degrees
Storage Conditions: -40- +80 degrees
Size: 38 x 8 x 2.5mm
Short Circuit Protection: protection, delay self-recovery

Connector:
B +: Connected to the battery positive
B- : Connected battery negative
MB : Connect the battery 1 to the connection point before battery 2
P + : Charge / discharge side positive (shared charge / discharge side)
P- : Connection / discharge terminal negative (charge / discharge side shared)
